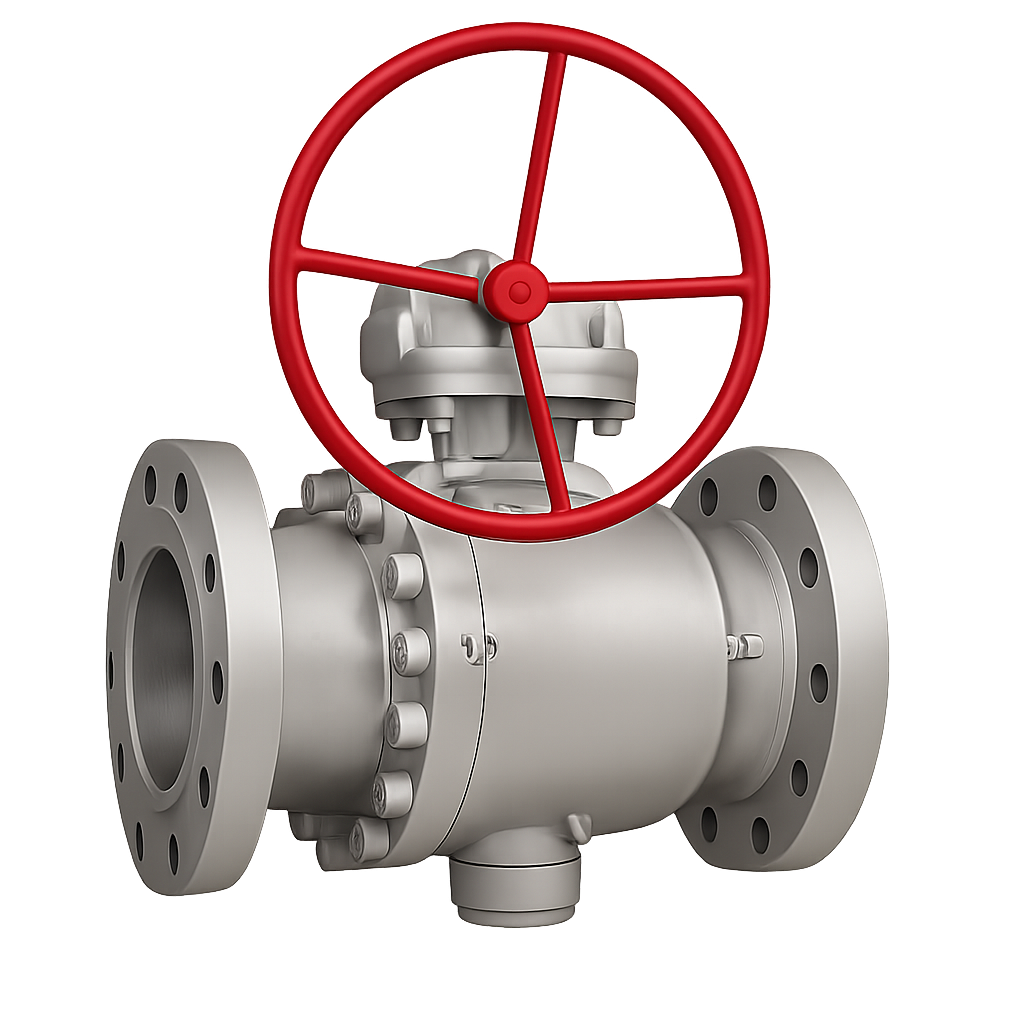

AsalAra Side Entry Ball Valve – Split-Body Forged/ Cast Design
A versatile ball valve with a split-body construction ideal for standard to severe service applications.
AsalAra Side Entry Ball Valve – Split-Body Forged/ Cast Design
A versatile ball valve with a split-body construction ideal for standard to severe service applications.
The AsalAra Side Entry Ball Valve is a classic two- or three-piece design ball valve where the body halves are bolted together around the ball. This construction allows ease of inspection, assembly, and customization, making it one of the most commonly used valve types in oil & gas, chemical, and general industrial systems.
Available in both floating and trunnion-mounted configurations, AsalAra’s side entry valves are precision machined, fire-safe, and API-compliant, offering outstanding performance in sealing, torque efficiency, and automation compatibility. It’s an optimal choice for projects requiring modularity, rapid delivery, and field serviceability.
Why AsalAra?
With both Top Entry and Side Entry options, AsalAra offers full flexibility across all phases of your industrial flow control systems — from design and installation to servicing and automation. Backed by international standards and precision manufacturing, AsalAra valves are built for mission-critical performance.
Size Range
NPS (inch)
½” – 56”
DN (mm)
DN 15 – DN 1400
Pressure Class
Standard Rating
ASME
Class 150 – 2500
API
API 6D / Up to 10,000 psi
Materials
- Body: ASTM A105, WCB, LCC, CF8M, F51, Inconel
- Ball: SS316 / Coated / Hardened
- Seats: Soft-seated (PTFE, PEEK, Devlon) or Metal-seated
- Stem: Anti-blowout SS stem with low emissions packing
- Seals: Graphite, FKM, Viton, Fire-safe ring sets
Standard Connections
- Flanged (RF/RTJ – ASME B16.5/47)
- Butt Weld (ASME B16.25)
- Hub ends, Clamp ends, or Custom
Product Line
AsalAra SE Series – Side Entry Ball Valves
Feature
Benefit
Modular Split Body
Facilitates inspection and part replacement
Trunnion or Floating Options
Adaptable to pressure/size requirements
Field Serviceable
Easy to assemble/disassemble on-site
Fugitive Emission Sealing
Optional ISO 15848-compliant designs
Double Block & Bleed (DBB)
Enhanced safety in hydrocarbon applications
Fire-Safe Certification
Per API 6FA / ISO 10497
Heavy-Duty Bearings
Reduces stem torque, improves service life
Wide Actuation Compatibility
ISO 5211 pad and anti-static design
- Oil & Gas pipelines
- Tank farms
- LNG receiving stations
- Chemical and refining
- Compressor stations
- District heating/cooling
The AsalAra Side Entry Ball Valve is a classic two- or three-piece design ball valve where the body halves are bolted together around the ball. This construction allows ease of inspection, assembly, and customization, making it one of the most commonly used valve types in oil & gas, chemical, and general industrial systems.
Available in both floating and trunnion-mounted configurations, AsalAra’s side entry valves are precision machined, fire-safe, and API-compliant, offering outstanding performance in sealing, torque efficiency, and automation compatibility. It’s an optimal choice for projects requiring modularity, rapid delivery, and field serviceability.
Why AsalAra?
With both Top Entry and Side Entry options, AsalAra offers full flexibility across all phases of your industrial flow control systems — from design and installation to servicing and automation. Backed by international standards and precision manufacturing, AsalAra valves are built for mission-critical performance.
Size Range
NPS (inch)
DN (mm)
½” – 56”
DN 15 – DN 1400
Pressure Class
Standard Rating
ASME
Class 150 – 2500
API
API 6D / Up to 10,000 psi
Materials
- Body: ASTM A105, WCB, LCC, CF8M, F51, Inconel
- Ball: SS316 / Coated / Hardened
- Seats: Soft-seated (PTFE, PEEK, Devlon) or Metal-seated
- Stem: Anti-blowout SS stem with low emissions packing
- Seals: Graphite, FKM, Viton, Fire-safe ring sets
Standard Connections
- Flanged (RF/RTJ – ASME B16.5/47)
- Butt Weld (ASME B16.25)
- Hub ends, Clamp ends, or Custom
Product Line
AsalAra SE Series – Side Entry Ball Valves
Feature
Benefit
Modular Split Body
Facilitates inspection and part replacement
Trunnion or Floating Options
Adaptable to pressure/size requirements
Field Serviceable
Easy to assemble/disassemble on-site
Fugitive Emission Sealing
Optional ISO 15848-compliant designs
Double Block & Bleed (DBB)
Enhanced safety in hydrocarbon applications
Fire-Safe Certification
Per API 6FA / ISO 10497
Heavy-Duty Bearings
Reduces stem torque, improves service life
Wide Actuation Compatibility
ISO 5211 pad and anti-static design
- Oil & Gas pipelines
- Tank farms
- LNG receiving stations
- Chemical and refining
- Compressor stations
- District heating/cooling
